Description

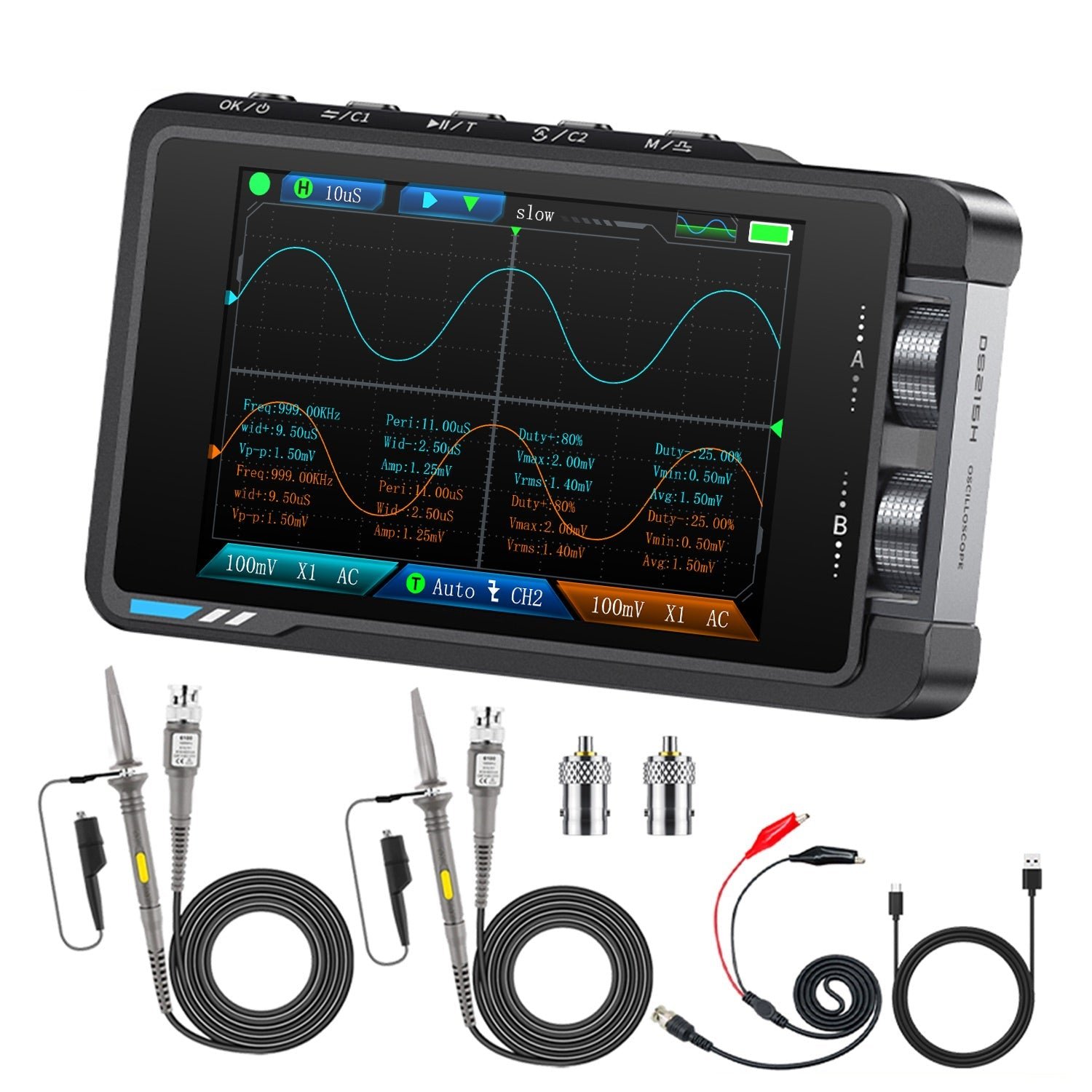

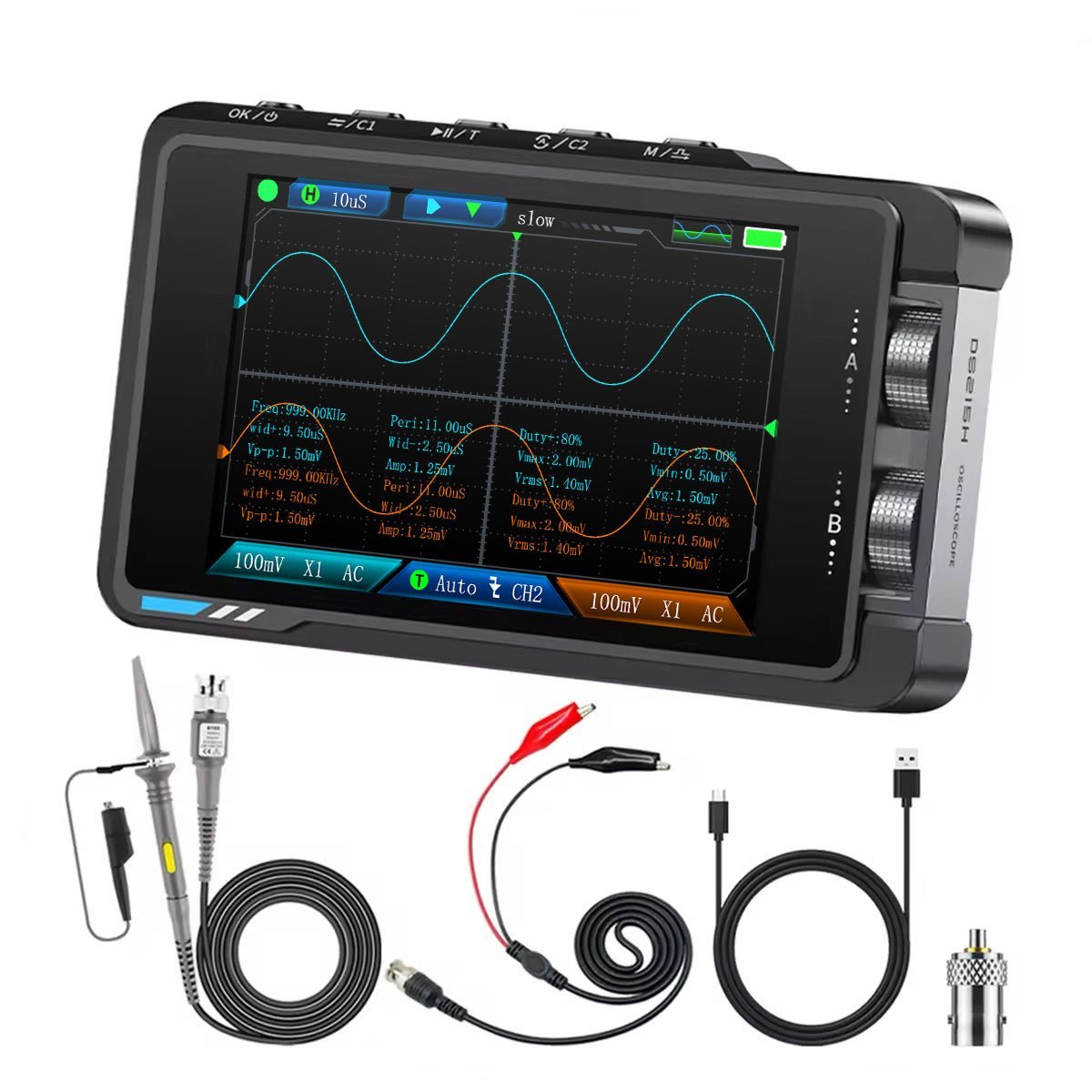

FNIRSI-DS215H is a comprehensive and practical two-in-one dual-channel digital test instrument launched by FNIRSI, designed for the maintenance and R&D industries.
Key Features:

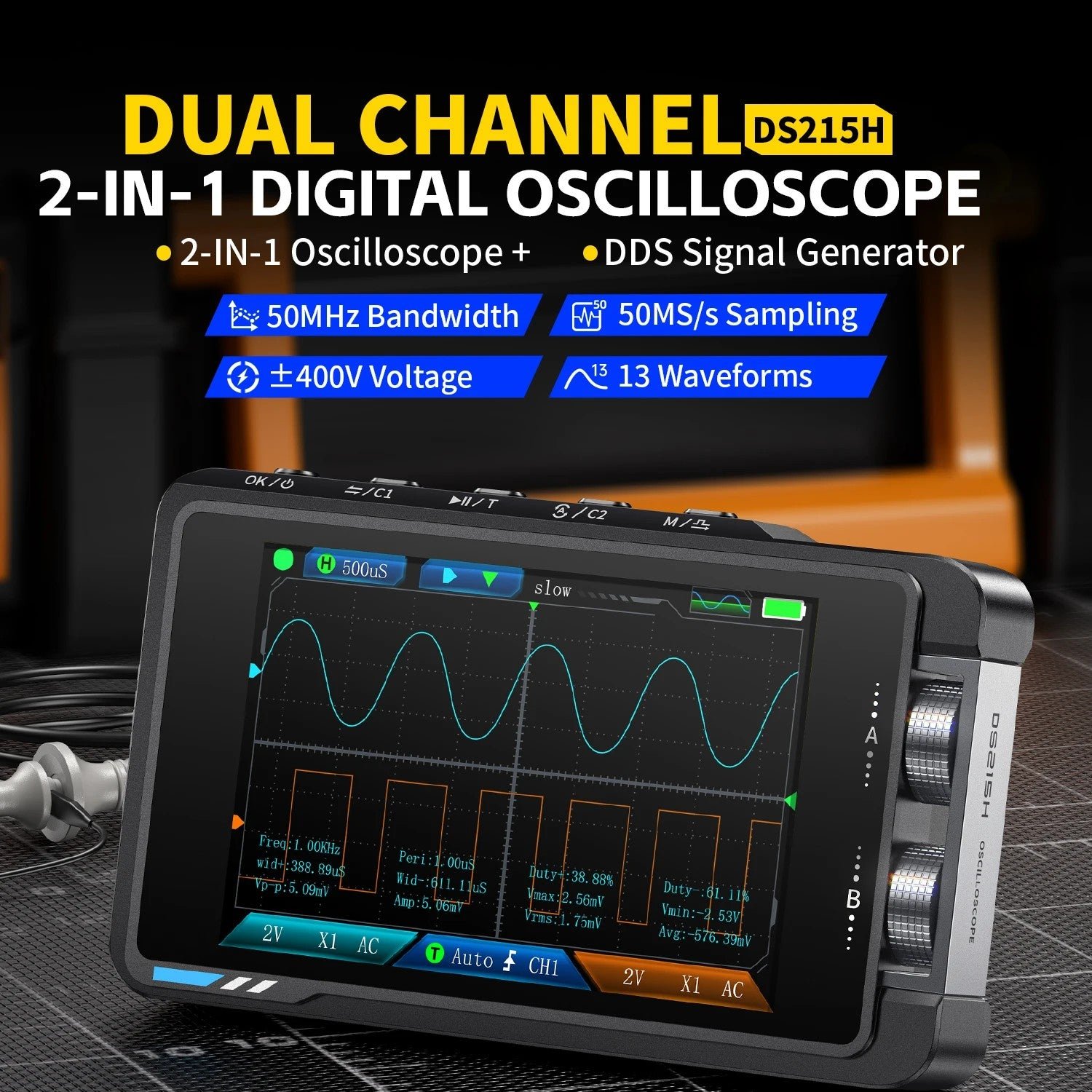

- High-precision measurement: The FNIRSI-DS215H offers high precision with a sampling rate of up to 250MS/s and a 50MHz analog bandwidth, ensuring accurate measurements for various applications.
- Wide voltage protection: Supports peak voltage measurements up to ±400V, offering reliable and safe performance in high-voltage scenarios.

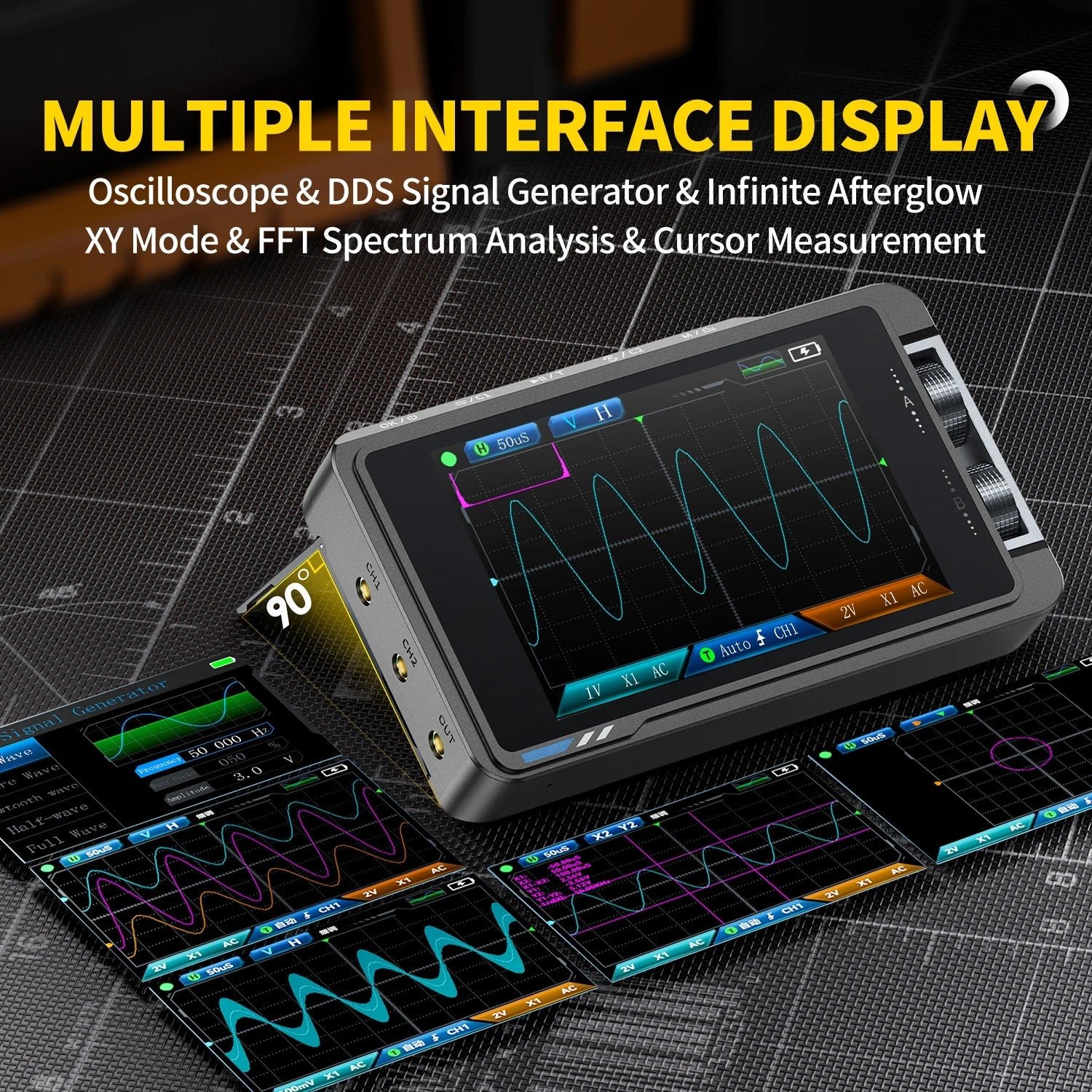

- Waveform storage: The device supports screenshot saving and viewing, making data analysis more convenient and efficient.

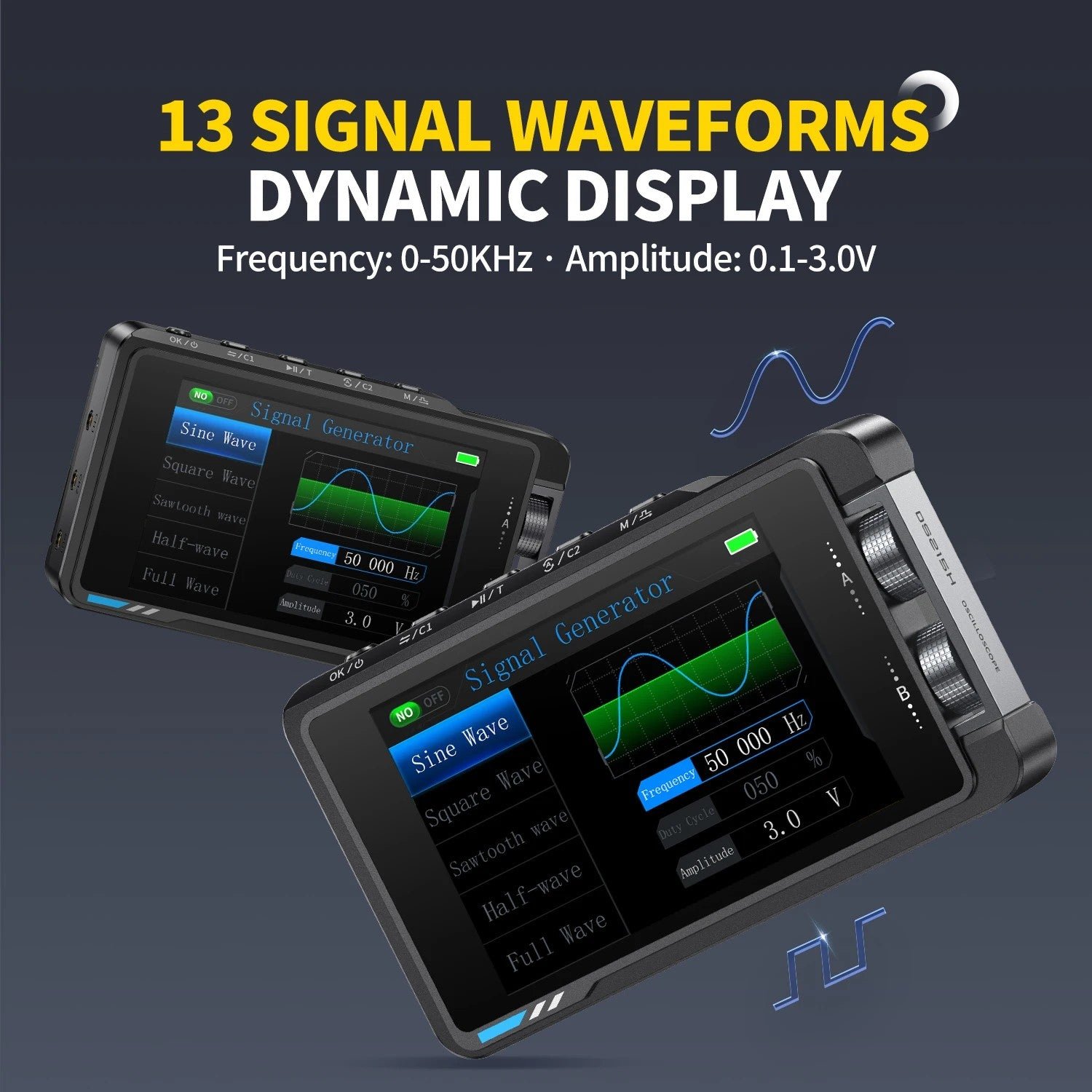

- Signal generator functionality: It features 13 waveform outputs with a frequency range of 0-50 KHz, adjustable by a 1Hz step. The output parameters, including frequency, amplitude, and duty cycle, are fully adjustable to meet various needs.
- Portable design: The device is equipped with a 3.5-inch display (480×320 resolution) for clear and intuitive visuals. Its compact and lightweight design makes it ideal for mobile use.
- Long battery life: Powered by a 1500mAh rechargeable lithium battery, it supports up to 4 hours of continuous operation, ensuring long-lasting performance for on-the-go use.
- Ideal for professionals: The FNIRSI-DS215H is designed to provide powerful and flexible features, offering users a portable and efficient tool for maintenance, R&D, and testing tasks.
Specifications
Basic Parameters:
Brand
FNIRSI
Model
DS215H
Display
3.5 inches IPS high-definition color screen
Backlight
Brightness Adjustable
Power Supply
TYPE-C (5V/1A)
Battery
1500mAh
Languages
中文, English, Deutsch, Português, 日本語, Español, 한국인, Pyccкий
Product Size
≈66x110x19.5mm
Product Weight
≈138g

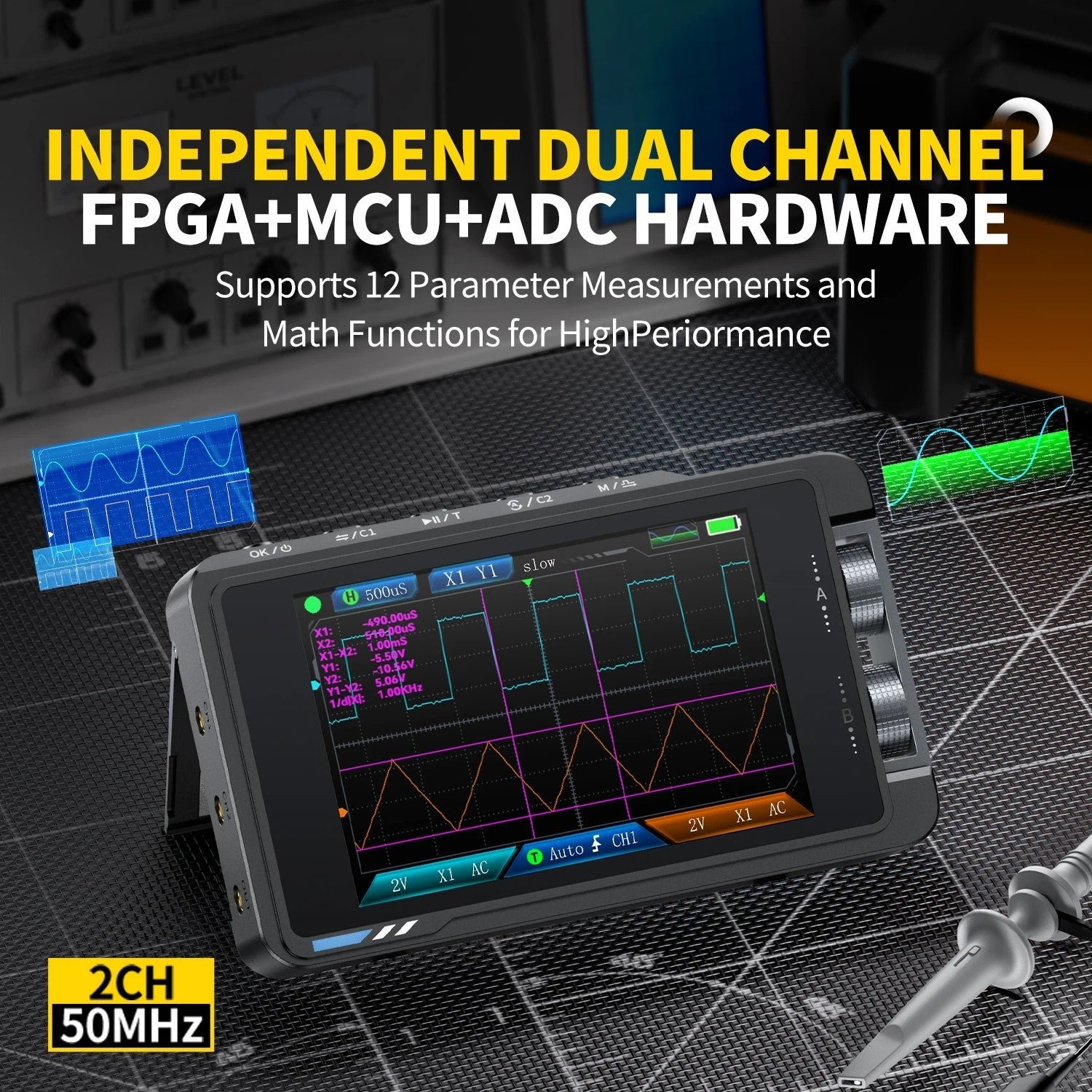

Oscilloscope Parameters:
Channel
Dual channel
Bandwidth
50MHz
Real-time Sampling Rate
250MSa/s
Storage Space
14M
Time Base Range
20ns/div – 20s/div
Vertical Sensitivity
10mV/div – 10V/div
Vertical Resolution
8 bits
Input Impedance
1MΩ
Waveform Display Mode
Scroll
Measurement Data
Cycle, Freq, Vpp, Max, Min, Avg, RMS, Amp, Dduty cycle, Pulse width
Probe Attenuation Factor
1x/10x
Input Coupling
AC/DC
Triggaer Type
Rising edge/Falling edge
Peak Voltage
±400V
Trigger Level Range
8 grids (positive and negative)
Trigger Mode
Auto / Normal / Single
Signal Generator Parameters:
Output Waveform
Supports multiple waveform outputs
Waveform Frequency
0-50KHz
Square Wave Duty Cycle
0-100%
Waveform Amplitude
0.1V-3.0V
